Precision Infrared Bridge Stone Slab CNC Cutting Machine

Fujian Xianda Machinery co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Precision Infrared Bridge Stone Slab CNC Cutting Machine

Brand Name : XIANDA MACHINERY

Model Number : ZDQJ-450/600/800

Place of Origin : Jinjiang, Fujian, China

Certification : API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

MOQ : 1 SET

Price : To be negotiable

Packaging Details : Plastic Package, Suitable for Sea Transportation

Delivery Time : 1 month

Payment Terms : L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others

Supply Ability : 1000 Sets/Year

Main Motor : 15/18.5/22kw

Type : CNC Cutting Machine

Power Supply : AC380V/50Hz

Weight : 6000KG

Trolley Size : 3200*2000mm

Cutting Speed : High Speed

Gross Power : 20.5/24/27.5kw

Cutting Accuracy : High Precision

Contact Now

Product Description:

Parameter

Unit

ZDQJ-450 ZDQJ-600 ZDQJ-800
Blade diameter mm 300-400 350-600 500-800
Max processing size mm 3200*2000*100 3200*2000*170 3200*2000*270
Trolley size mm 3200*2000 3200*2000 3200*2000
Worktable tilting angle ° 0-85° 0-85° 0-85°
Main motor kw 15 18.5/22(optional) 22
Gross power kw 20.5 24/27.5(optional) 27.5
Water consumption m³/h 3 3 3
Worktable rotating angle ° 0-90°/0-360°(optional) 0-90°/0-360°(optional) 0-90°/0-360°(optional)
Outline dimension mm 5850*4750*2700 5850*4750*3000 5850*4750*3400
Gross weight kg 5500 5750 6000

Precision Infrared Bridge Stone Slab CNC Cutting Machine
Precision Infrared Bridge Stone Slab CNC Cutting MachinePrecision Infrared Bridge Stone Slab CNC Cutting Machine

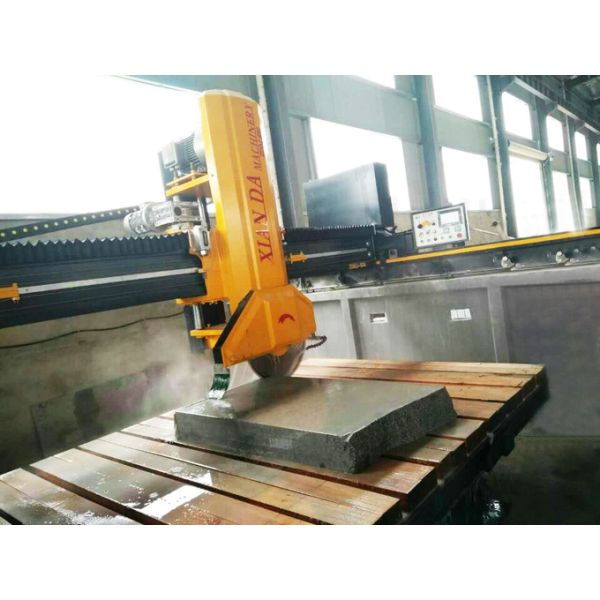

This machine is controlled by microcomputer, its worktable can be 90°/360° rotating. Special structure for the guide pulley and side beam makes its culting high accuracy, high stablity, high eficiency. It's especially suitable for processing large granite and marble plates.

Technical Parameters:

Technical Parameters Value
Blade Diameter 300-800mm
Water Consumption 3m³/h
Type CNC Cutting Machine
Power Supply AC380V/50Hz
Worktable tilting angle 0-85°
Cutting Speed High Speed
Trolley Size 3200*2000mm
Gross Power 20.5/24/27kw
Weight 6000KG
Outline dimension 5850*4750*3400mm

Applications:

  • Stone Processing Factories: This machine is ideal for large-scale stone processing factories that need to cut large blocks of stone into precise slabs quickly and efficiently. The ZDSC-400 can handle blocks up to 3200*2000mm and has a worktable tilting angle of 0-85°, making it suitable for a wide range of stone cutting applications.
  • Construction Sites: The ZDSC-400 is also suitable for use on construction sites, where it can be used to cut stone slabs to specific sizes and shapes for various building projects. Its versatility makes it an ideal tool for cutting stone for flooring, walls, countertops, and other construction applications.
  • Architectural Design Firms: Architectural design firms can use the ZDSC-400 to create custom stone designs for their clients. The machine's ability to handle hollow column processing and arc slab processing makes it ideal for creating unique and intricate stone designs that would be difficult to achieve with other cutting machines.
  • Stone Retailers: Stone retailers can also benefit from the ZDSC-400. The machine's ability to cut stone slabs quickly and accurately means that retailers can offer custom cutting services to their customers, allowing them to create unique and custom stone designs for their homes and businesses.

Customization:

Customization Services for Granite and Marble Cutting Machine - Stone Machine - Automatic Cutting Machine

Brand Name: XIANDA MACHINERY

Place of Origin: Jinjiang, Fujian, China

Certification: API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF

Minimum Order Quantity: 1 SET

Price: To be negotiable

Packaging Details: Plastic Package, Suitable for Sea Transportation

Delivery Time: 1 month

Payment Terms: L/C, T/T, D/P, Western Union ,Paypal ,Money Gram, Others

Supply Ability: 1000 Sets/Year

Worktable Rotating Angle: 0-90°/0-360°

Cutting Speed: High Speed

Main Motor: 15/18.5/22kw

Type: CNC Cutting Machine

Cutting Accuracy: High Precision

Support and Services:

The Stone Slab Cutting Machine product technical support and services include:

  • Installation and commissioning of the machine
  • Training on machine operation and maintenance
  • Regular maintenance and inspection services
  • 24/7 technical support for any issues or concerns
  • Calibration and alignment services for optimal cutting performance

Packing and Shipping:

Product Packaging:

The machine will be securely fastened and cushioned with foam to prevent any damage during transit.

Shipping:

We offer worldwide shipping for the Stone Slab Cutting Machine. The shipping cost will depend on the destination and will be calculated at checkout. Once the machine has been shipped, we will provide you with a tracking number so you can track the delivery status.
